Ariens APEX 52 23 HP 52-Inch Commercial-Grade Zero-Turn Mower with Kawasaki FX691V V-Twin and ZT-3100 Transmission

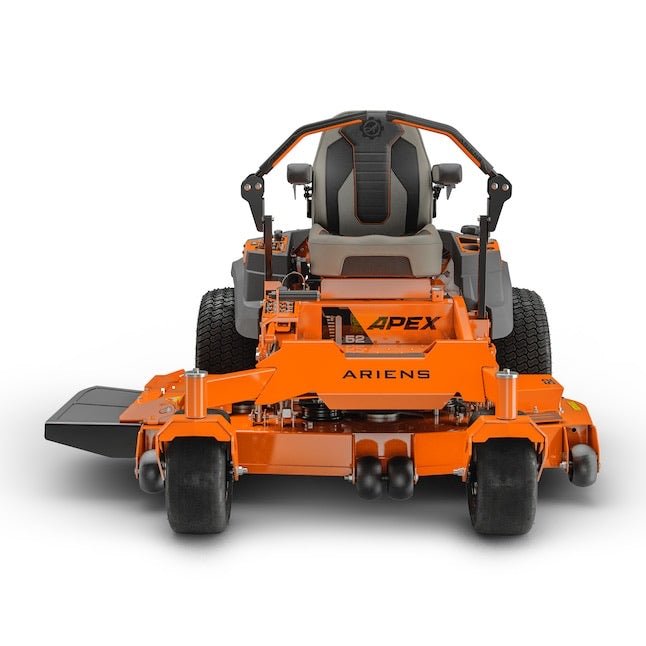

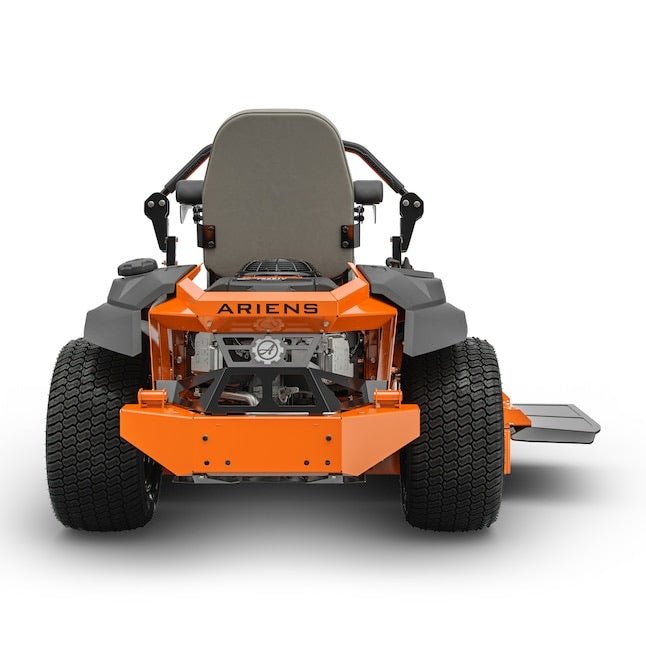

The APEX 52 sits at the top of Ariens’ residential zero-turn lineup — a 52-inch lap-bar zero-turn paired with a Kawasaki FR691V V-twin and twin Hydro-Gear ZT-3100 commercial-grade transaxles. Where the IKON series competes on residential balance and the EDGE series competes on price, the APEX commits to commercial-tier components throughout. The 4-year consumer warranty is the highest in Ariens’ residential catalog and reflects the engineering choices that separate this mower from the IKON it sits above.

Power comes from a Kawasaki FR691V V-twin OHV engine displacing 726cc. The FR series is the residential-grade extension of Kawasaki’s commercial FX engine line, sharing the same overhead valve architecture, full pressure lubrication, and dual-element premium air filtration. Owners running the APEX 52 on a typical weekly residential schedule will see oil and filter changes once a season — essentially the entire engine maintenance routine. Electric key start, automatic choke, and a regulated charging system handle cold mornings without operator intervention.

Twin Hydro-Gear ZT-3100 commercial-grade transaxles power the rear wheels independently, allowing true zero-radius pivoting controlled through a pair of lap bars. Top forward speed is 8 mph and reverse runs at 4 mph. The ZT-3100 is significantly heavier-duty than the EZT and ZT-2200 transmissions found on the IKON and EDGE series — larger oil capacity, reinforced internals, and a service life calibrated for several seasons of weekly multi-acre mowing or light commercial use.

The 52-inch heavy-gauge fabricated steel deck cuts at 13 height settings between 1.5 and 4.5 inches via a foot-lift pedal and pin-locked indicator. Three cutting blades work in side-discharge configuration. The deck shell is welded from heavier plate than the IKON’s deck and is engineered to hold its cut-quality geometry across years of weekly mowing.

Operator comfort centers on a premium high-back seat with armrests — noticeably more padded than the IKON’s seat — plus soft-grip lap bars and a vibration-dampening foot deck. The dashboard layout is honest and minimal: ignition, throttle, choke, PTO knob, hour meter, fuel gauge.

The chassis is welded tubular steel with corrosion-resistant powder-coat throughout and a heavier flat-bar reinforcement structure underneath the operator station. The 5.1-gallon fuel tank delivers four-plus hours of continuous mowing time. The standard rear hitch accepts most popular tow-behind attachments — dump carts, broadcast spreaders, plug aerators, dethatchers, and lawn rollers all mount without modification.

For two- to five-acre properties or light commercial mowing, the APEX 52 is the most pragmatic Ariens prosumer zero-turn in the catalog. The ZT-3100 commercial transmission and 4-year warranty are the substance behind the price premium.
